Description

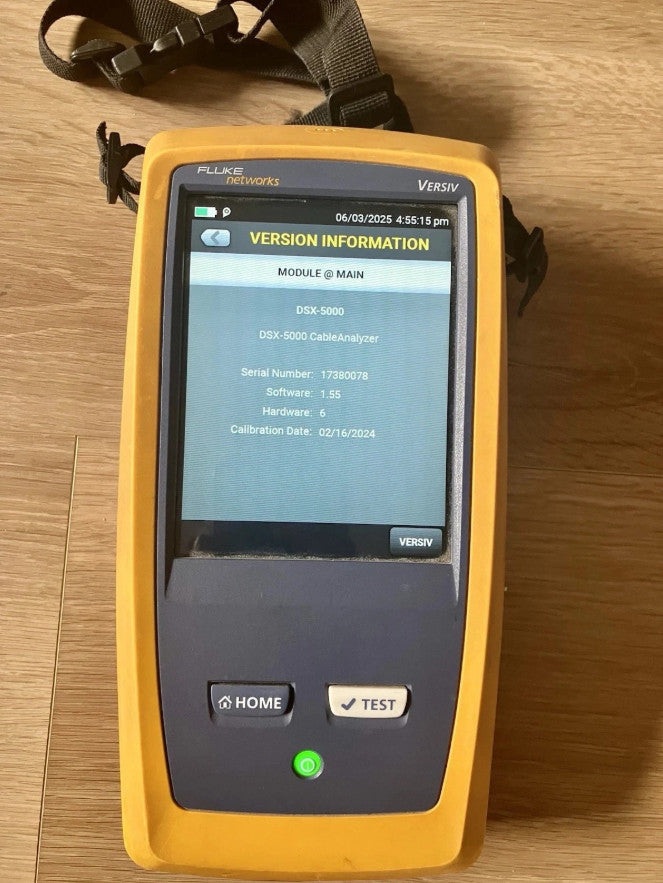

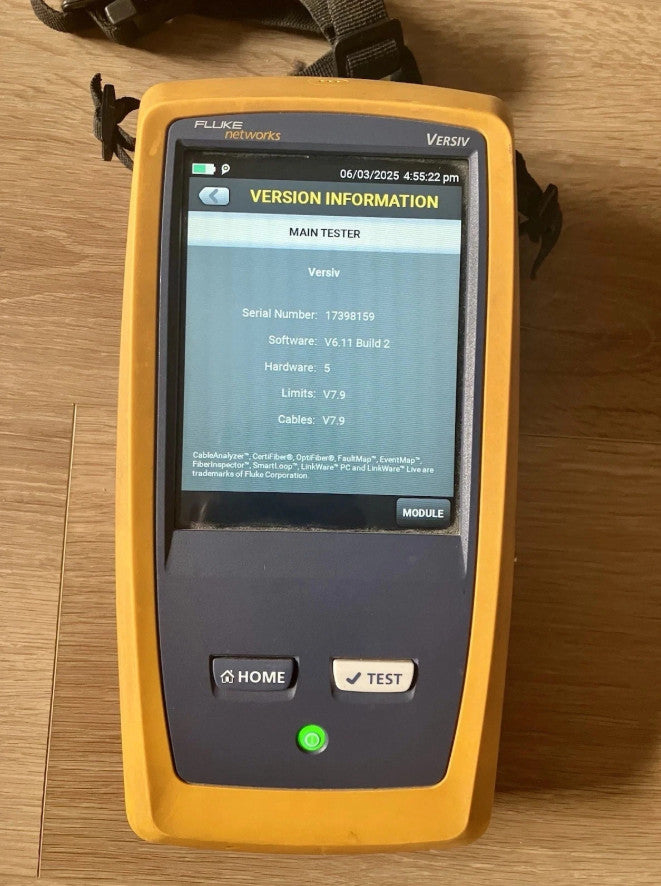

Fluke DSX CableAnalyzer DSX2-5000 – network tester kit including CFP-QUAD mods regularly calibrated. Latest calibration was Feb. 2024 so the suggested yearly calibration expired recently in Feb. 2025.

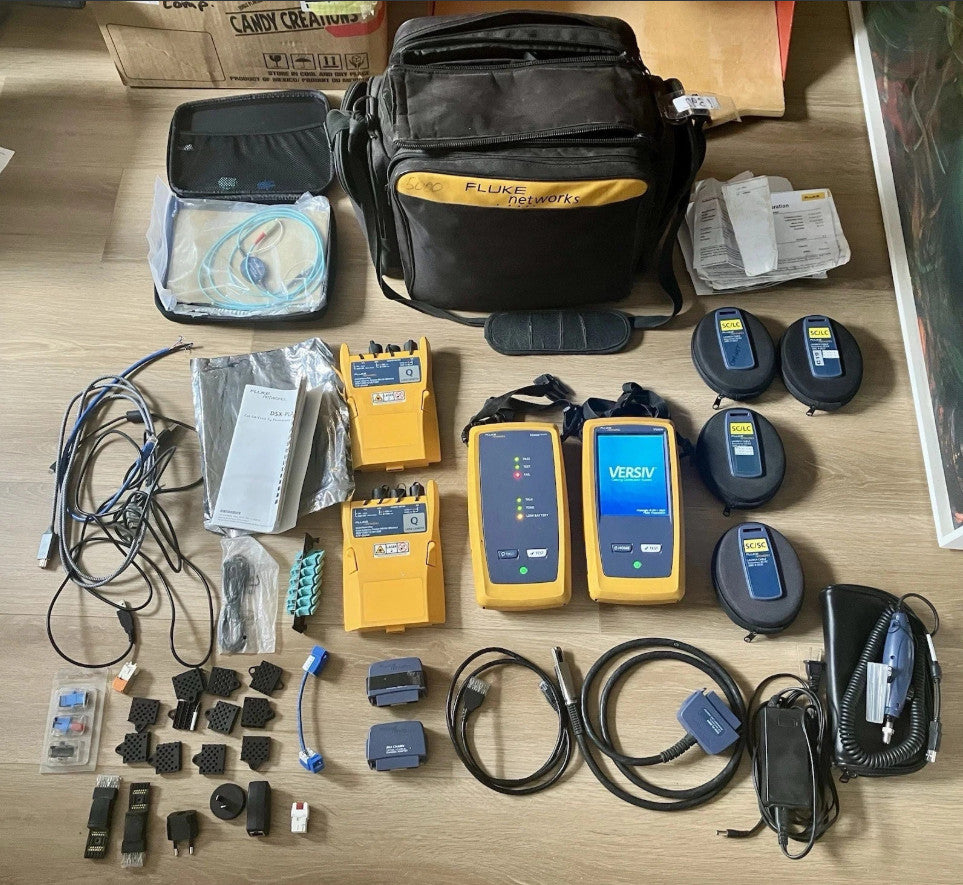

Tons of accessories, see pictures as everything in pictures is included.

The DSX CableAnalyzer series copper test solution enables testing and certification of twisted pair cabling. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand. The DSX CableAnalyzer series provides accurate, error-free certification.

Tech Specs

Specifications are provided by the manufacturer.

Overview

Brand : Fluke

Product Line : Fluke DSX CableAnalyzer

Model : DSX2-5000

Manufacturer : Fluke Networks

Network & Communication

Cable Types : CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a

Compliant Standards : EN 61010-1 1st Edition Amendments 1, 2, EN 61326-1

Features : 1-year calibration period, 2-way autotest, Headset connection, USB connectivity, Wi-Fi IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)

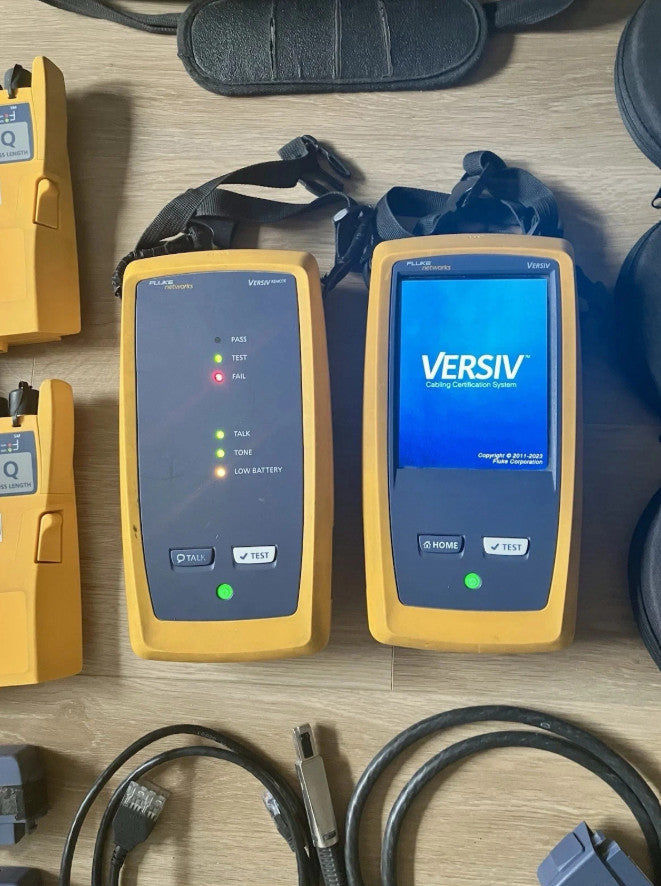

Kit Content : 2 x DSX-5000 CableAnalyzer Module, Versiv Mainframe, Versiv Remote

Media : Copper

Product Type : Network tester kit

Software : AxTalk, LinkWare PC

Test Standards : ISO/IEC 11801, TIA-568-C.2

Tests, Tools and Measurements : Attenuation-to-crosstalk ratio far end, DC loop resistance, Delay skew between pair, Insertion loss (attenuation), Length, Near-end crosstalk, Power sum, Propagation delay, Return loss, Wiremap
